Titanium bikes Bikes for a lifetime
WHAT WE OFFER
We want to create the titanium bike of your dreams. One which you can adapt to your needs, now and in the future. We want to build you a faithful companion which will accompany you for decades without asking anything in return.
The NUA Ti-CORE and Ti-PINION frames are the heart of Nua Bikes’ production. Superior quality titanium frames, designed to be versatile, engineered to give maximum performance, and handmade by experienced craftspeople. This frames are the basis of both our production models and our made-to-order bikes. Also available seperately if you want to build your own custom bike.
- TITANIUM FRAMES
- NUA Ti-CORE & NUA Ti-PINION
- TITANIUM COMPONENTS
- NUA Ti-COMPONENTS line
- PRODUCTION BIKES
- Nua's own presets
- CUSTOM BIKES
- Full custom made-to-order bicycles.
NUA Ti-CORE - THE HEART OF YOUR BIKE € 1495
A timeless treasure, this titanium frame will be with you for decades, even as your requirements change. You can start with a minimal single speed for urban use, then convert it into a fully-equipped commuter bike, a cyclocross, a gravel bike or a touring bike, as your needs evolve. Your Nua Ti-CORE titanium frame will always be the heart of your Nua, come what may. The solidity and comfort of the ride quality, and the stable yet agile geometry will be a joy, no matter which path you choose.
Belt or chain? Internal gear hub or derailleur? Straight or tapered forks? Road or wide tires? Racks? Mudguards? Integrated lights? No problem, you decide.
- Titanium Gr.9 3Al2,5V
- Head tube
- 44 mm
- Bottom bracket
- BSA 68 mm
- Brake mounts
- Disc (post mount) and Caliper
- Belt port
- Invisible port on seat stay
- Eyelet mounts
- 2 bottles, rack and mudguards
- Seat post clamp
- Cable routing
Our titanium fork is a work of art in itself. You can opt for the disc brake version (post mount), with internal cable routing, or the caliper brake version.
- Crown race diameter
- Brake type
- Post mount
- 45 mm
- Axle to crown
- 395 mm
A beautiful and minimalist straight titanium handlebar which maintains good rigidity, while absorbing vibration incredibly well.
- 0 mm
- 600 mm
- Clamp diameter
- 31,8 mm

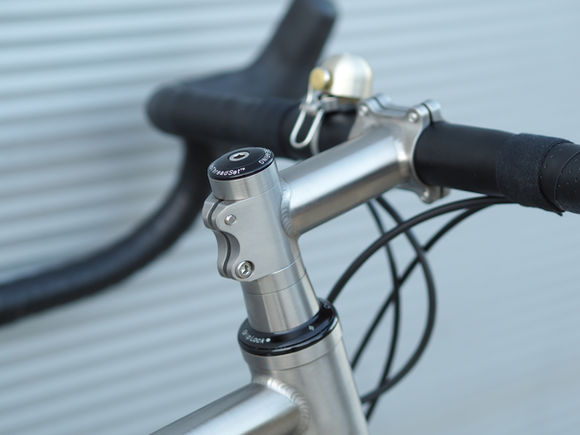

A good stem is the key to a confident ride. Our top quality titanium stem is available in a standard 100mm length, but can also be ordered to measure.
- Steerer clamp diameter
- 1-1/8 "
- Handlebar clamp diameter
- 31,8 mm
- +/- 6º
- 100 mm
This titanium seat post is a sure and elegant way to acheive comfort.
- 27,2 mm
- 2 Bolts
Titanium handlebar and stem combo. Our minimalist vision of a light but super-solid cockpit. You can choose each and every measurement and angle to acheive the perfect fit. A marvel weighing just 300gr.
The epitome of our philosophy: versatility, cutting-edge technology and maintenance-free durability. All combined in a machine with the minimalist, elegant, timeless look which characterizes all our bikes.
The Nua Dual has been designed to live a double life: on weekdays a comfortable and speedy urban commuter, on weekends a spirited off-roader, ready for any adventure. A bike for everything and forever.
Equipped with the fabulous duo of Pinion and Gates: a state-of-the-art gear mecahanism seamlessly integrated into the frame design and a clean and silent belt transmission, working together in perfect harmony. You only have to try this combination once to be convinced of its superiority, whatever the conditions.
The 60mm wide tires offer traction and comfort on any off-road track, and roll effortlessly on asphalt.
All this only accentuates the superb quality of our frame and other components, all constructed from titanium, the only material which effers both rigidity and comfort. We think we've created the bike of the future, but with all the beauty of a bike of the past.
DO IT ALL BIKE
Have you ever wished you had a bike which could do everything? Which would adapt to any terrain and any climate? Nua Audaç is the answer to your dreams. Equally perfect for urban commuting, weekend trekking, touring, or mountain adventures.
Equiped with the latest Shimano internally geared hub, it will take on any degree of slope, aided by its cyclocross tires. A maintenance-free belt drive, a hub dynamo feeding powerful LED lights, hydro-disc brakes, rack, and mudguards complete this versatile machine. A prime example of what can be acheived with our Nua Ti-CORE and Ti-FORK (also available seperately).
- Nua Ti-CORE
- Nua Ti-FORK D
- Belt - Gates Carbon Drive CDX
- Shimano Alfine IGH 8 or 11 speeds
- Shimano Deore hydraulic disc
- Supernova Pure + Hub dynamo
- Tubus Fly
- Curana C-Lite with rear B&M light
THE URBAN ROCKET
Kappstein GmbH and Co., the German manufacturer of premium bike components, asked us to design a stylish, urban bicycle which they could use to showcase their new Doppio 2-speed bottom bracket gearbox. This design is the fruit of that collaboration. Zippy and responsive, it’s a joy to ride. Our Nua Ti-CORE frame has once again proved its versatility, combining with our all-new Nua CF carbon fork and other superb quality components to create a bike with a seriously sporty look, and a feel to match. Available also as Single Speed
- Nua Ti-CORE
- Nua CF-FORK Disc
- Kappstein Doppio 2S BB
- Gates Carbon CDX red belt
- Crank Brothers Cobalt
- Shimano Deore hydraulic disc
- Stem and Seat post
- Thomson X4 - Elite
- Saddle and Grips
- Ergon SMC4 - GS1
This was our first production bike, the origen of Nua Bikes. A single speed stripped of everything superfluous. Simple, light, and incredibly agile on the street, thanks to its comfortable and stylish titanium frame.
Built with the highest quality components, it guarantees many years of enjoyment with minimal maintenance. A landmark design from Barcelona.
- Nua Ti-CLASSIC
- Nua Ti-FORK R
- Belt - Gates Carbon CDC
- Single Speed
- Saddle and grips
- Brooks Leather
- Calipers R559 Long Reach
- Shimano XT hubs + Mavic Rims
- Nua Ti-BAR
NUA FLOC DE NEU (CUSTOM)
THE MAGIC CARPET
This custom project puts a new twist on our SC-01. Described as a magic carpet, its balloon tires transform the worst road surfaces into velodrome racetracks. Originally conceived as fixed gear, it’s easily convertible to single speed by installing brakes and flipping the wheel, since this is one of the few bikes which combine a flip-flop wheel with belt transmision. Sandblasted titanium, honey-brown leather, and green painted components give an organic feel which perfectly compliments the tecnology used in this unique machine.
- Nua Ti - Classic Dark finish
- Nua Ti - Fork R Dark finish
- Belt - Gates Carbon CDC
- Fixed Gear
- Crank Brothers Cobalt
- Balloon - 50-622 Schwalbe
NIK'S NUA (CUSTOM)
Nik wanted a commuter bike suitable for the difficult climate of New York. A titanium frame and fork, single speed belt driven transmission, disc brakes, and mudguards seemed like the perfect combination for a bike which would be out every day in all weathers.
Our Ti-CORE frame is, among other things, extremely versatile. Although this bike has been built as a single speed, Nik will be able to adapt it to his future needs. He could even install a 14 speed Rohloff IGH if he so desires, since the sliding dropouts and internal cable routing are designed to accomodate a wide range of possible configurations.
Disc brakes definitely have the advantage in wet climates, so we’ve gone with Magura hydraulics, with 160mm rotors for progressive braking, installed on Shimano XT hubs. Ryde rims and Sapim spokes complete the hand built wheels.
For the points of contact between bike and body, Nik opted for pieces from Brooks’ Cambium range, which are water-resistant and maintenance-free: a C15 saddle and Slender grips, both in a nice rust colour.
In a nutshell, an agile, fun, and bullet-proof machine on which to ride the New York streets in style.
MICHAEL'S NUA (CUSTOM)
Some people know exactly what their ideal bike would be like, so they go for a custom build. This bike is a good example. Michael needed a bike that was both beautiful and practical, designed to go fast in any weather and over any terrain
We built the bike with top quality practical elements like the minimalist mudguards, the titanium luggage rack and a permanent lighting system composed of an SON Delux hub dynamo and Supernova LED lights with special mounts. And for the contact points, a sublime Gilles Berthoud leather saddle with titanium rails (which perfectly complement our titanium seat post), with matching bar tape.
A beautiful hybrid: the offspring of a cyclocross and a road bike; adapted for commuting; modern, but with classical touches…..In a nutshell, a bike built according to his unique vision, a far cry from any factory produced model. That’s the magic of a custom build.
GEOMETRY & SIZES
The NUA Ti-CORE has a similar geometry to a ciclocross frame, with slight modifications which make it even more versatile. Stable, agile, precise, and comfortable, it’s equally well suited to dirt track riding, touring, or your daily city commute.
Available in 4 standard sizes, plus custom sizes.
|(A) TT (H)||530||550||570||590|
|(B) ST (CT)||530||550||570||590|
|(C) HT angle||71||71.5||72||72|
|(D) ST angle||74||73.5||
|(E) BB drop||70||70||70||70|
|(F) Chain Stay||435||435||435||435|
|(G) Fork Offset||45||45||45||45|
|(H) Wheel Base||
Info & Contact
Nua Bikes is a small bicycle builder located in Barcelona. We make high quality bikes to order, allowing us to pay careful attention to detail and quality control, and – above all – allowing us to deal directly with our customers. We liaise with you throughout the making of your bike, and then deliver it directly to your door.
Nua (the Catalan word for nude) = “without the usual coverings, furnishings, etc; bare”. Our name reveals much about our philosophy and about our bikes. We try to be genuine in everything we do, searching for the essence of things and acting acordingly.
At Nua Bikes we are concerned with sustainiblility and responsible consumption, and we stand firmly against planned obsolescence. For that reason we create durable, adaptable products which are designed to be useful for the maximum time possible.
If you are interested in who are behind NuaBikes, click here.
